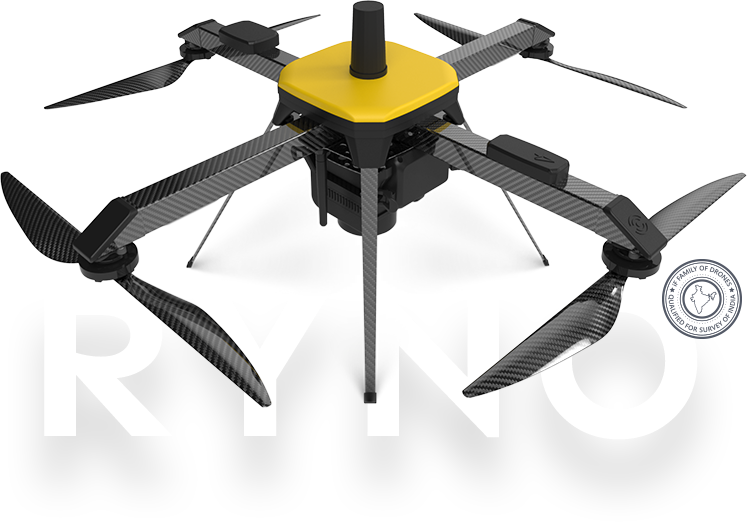

The Mapping Maestro

Up to

40 min

Flight Time

Up to

4 km

Operational Range

Up to

2 kg

Take-off Weight

Overview

RYNO is ideaForge’s micro category survey-grade drone designed and specialized for mapping applications. It is equipped with an advanced mapping payload and ideaForge’s state-of-the-art- PPK module to deliver superior results. Due to its high accuracy in mapping applications, it is the only micro category drone that has been approved by the Survey of India (SOI) towards the Swamitva Yojana, which is set to be one of the largest drone-powered mapping projects in the world.

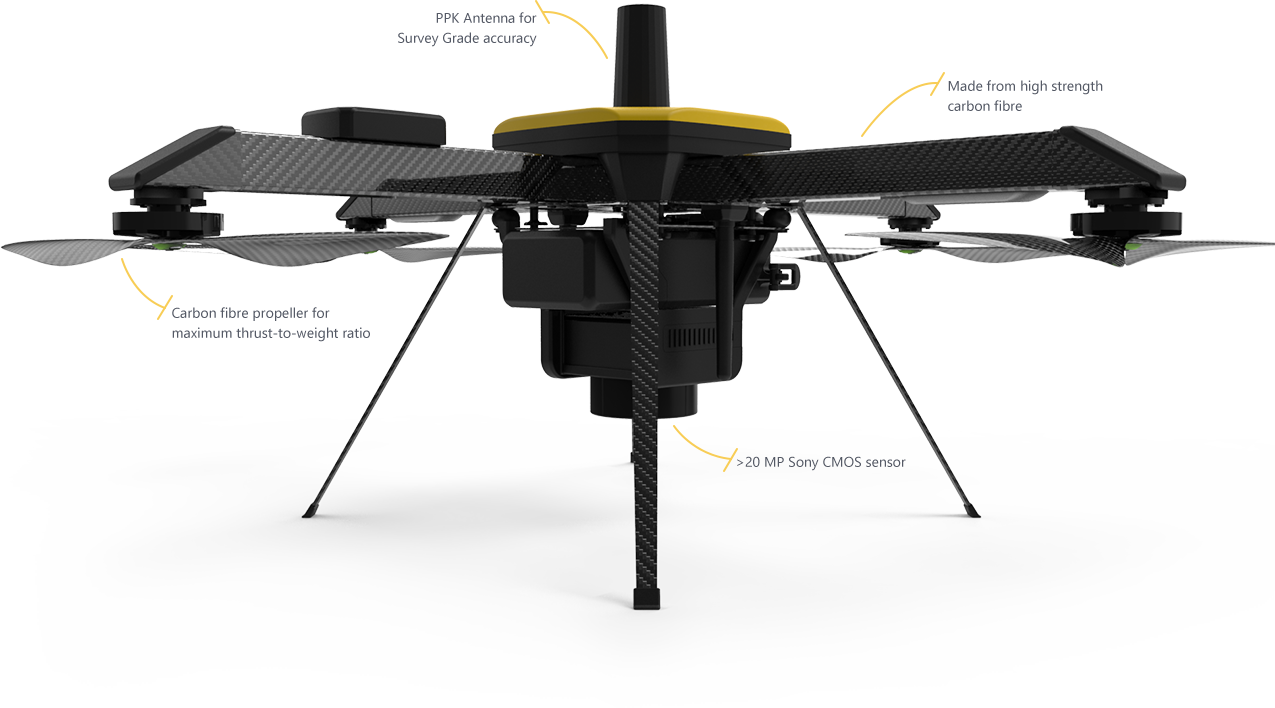

shape-6-copy-2

Tech Specs

India is a vast and diverse country. Frigid mountainous regions, hot deserts, humid plains and wetlands with torrential rains, the country has regions that represent every weather pattern and terrain conditions. Proudly Made in India, RYNO UAV has been built to withstand these demanding conditions and deliver stellar performance.

Aerial Vehicle (AV) Characteristics

UAV Weight with battery and max. payload
Range of live transmission (LOS) 4 km (un-obstructed & interference free)
Typical Cruise Speed 10 m/s
Functional Temperature Range -10°C to +50°C
Dust & Drizzle Resistance IP53 rating
Deployment Time
Packaging and Storage Backpacks to carry all mission critical components
Regulatory Compliance NPNT Ready – applicable for Indian airspace

Base Station Characteristics

GNSS Grade High accuracy L1 & L2 Frequency Band Enabled

Mapping Performance at 60m AGL

Ground Sampling Distance (GSD)
Typical X, Y accuracy
Typical Z accuracy
Absolute X, Y accuracy
Absolute Z accuracy

Ground Control Station (GCS) Software Features

Terrain Avoidance Detects and avoids natural terrain by using elevation data (where available)
Geo Tagging

Communication link Characteristics

Autonomous Flight Termination System or Return Home (RH) option Return home triggered by land command on various fail safe features

Failsafe Features

Multiple GPS on-board For Redundancy
Auto-Return to Home and Land On Communication Failure
Auto-Return to Home and Land On Low Battery
Auto-Return to Home and Land On exceeding Wind limit of the system
Auto-Return to Home and Land On Battery Imbalance
Auto-Return to Home and Land On exceeding Temperature limit of the system

SOI Quality

ideaForge family of survey-grade mapping drones are qualified by Survey of India (SOI) for Swamitva Yojna
Superior-Accuracy
Robust-Build-Quality
SOI Quality

ideaForge family of survey-grade mapping drones are qualified by Survey of India (SOI) for Swamitva Yojna

Superior Accuracy



Robust Build Quality

RYNO airframe is built for over 2000 mapping operations

Best-in-Class-Area-Coverage
Terrain-Avoidance
Compliant-With-Air-Travel
Best-in-Class Area Coverage

Fly longer and farther for quicker ROI

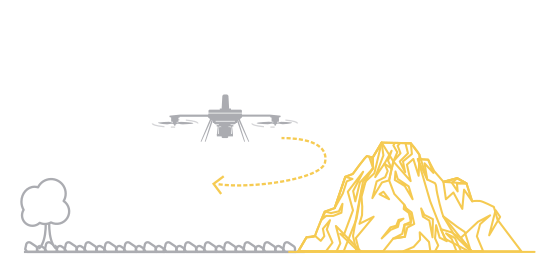

Terrain Avoidance

Safely conduct surveying operations in tough weather and terrain conditions

Compliant With Air Travel

With the rating less than 100 watt hrs, RYNO battery can be hand carried in flight for easy transportation

Man-portable-1
Quadcopter-Configuration-with-VTOL-1
Waypoint-Based-Navigation

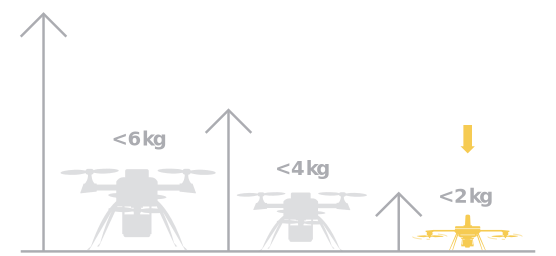

Man-portable

75% Lighter than Drones with Similar Performance

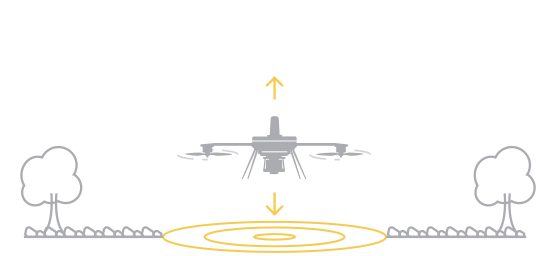

Quadcopter Configuration with VTOL

Conduct operations with increased flexibility, even from smaller areas

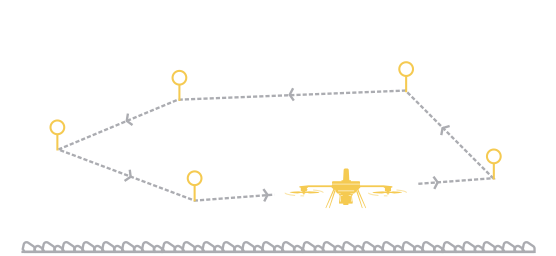

Waypoint Based Navigation

Tell RYNO where to go and let it take care of the rest

Less-than-10-minutes-Deployment-Time-1
Minimal-Training-Requirements-1
NPNT-Ready-1

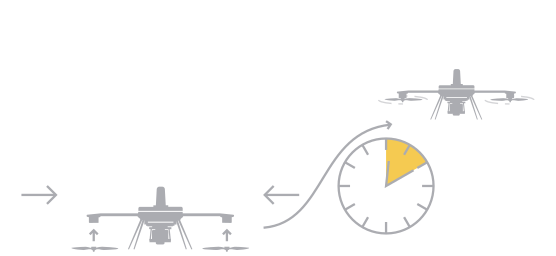

Less than 10 minutes Deployment Time

User-friendly assembly to conduct mapping operations faster

Minimal Training Requirements

No UAOP, Security Clearance or DGCA Training required*
*applicable in India only | under 60 m AGL

NPNT Ready

Designed for NPNT standard

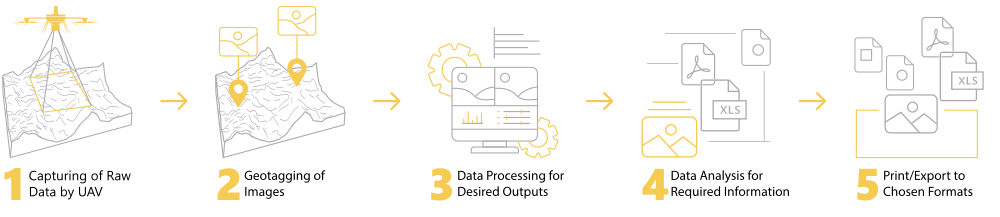

Step-by-Step Execution

Full-Flow

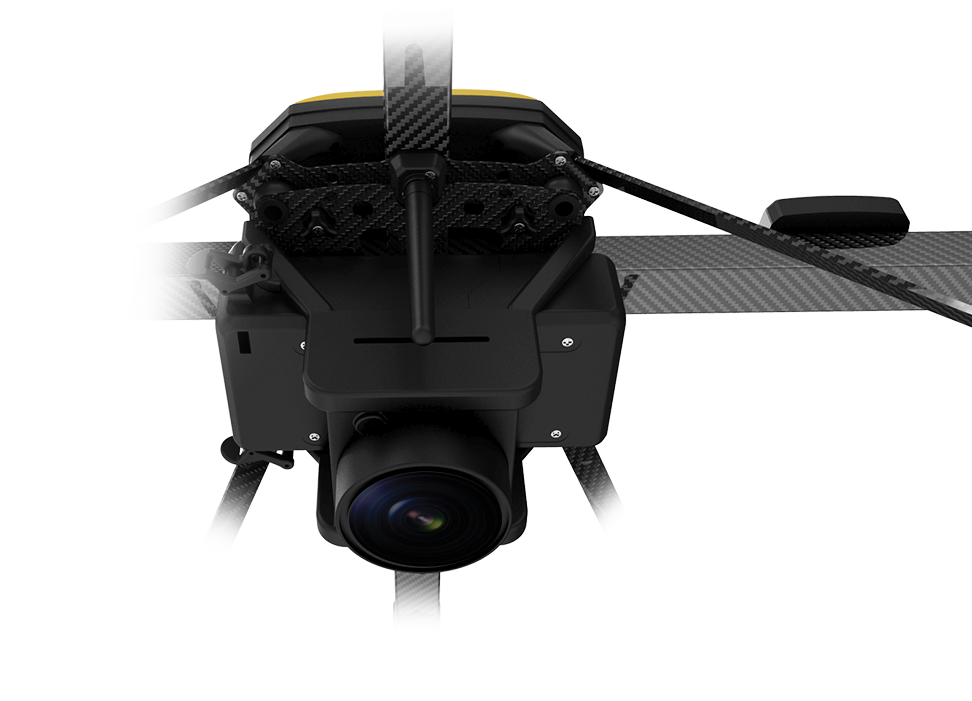

Payloads

The combination of mapping payload with PPK module is a powerhouse in itself. It delivers class-dominating accuracy that has never been seen before.

layer-16

>20Megapixel Camera

>APS-C CMOS Sony Sensor

>64GB Storage (Expandable)

layer-18

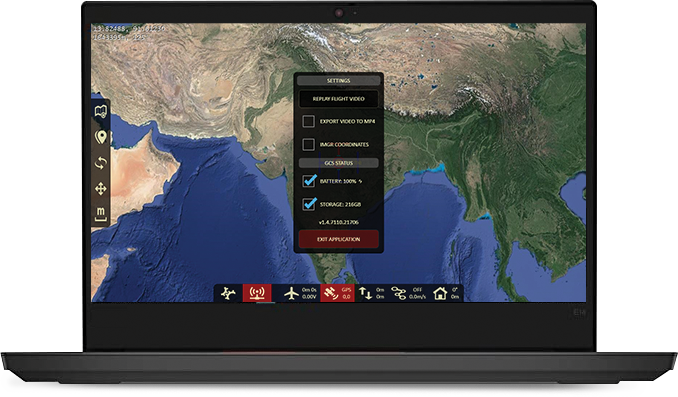

Ground Control Station

Our state-of-the-art GCS enables fully autonomous flight and provides a host of safety and security features.

  • Terrain Avoidance to keep your RYNO safe
  • Easy Takeoff/Landing ensures you concentrate on outcomes
  • Flight Planning for predictable and repeatable mapping operations
  • Geotagging software for accurate post-processing
  • Live Display of Flight Parameters to keep you updated every step of the way
  • Encrypted Communication for highest privacy
  • Fail Safe Features for Comm Loss, Low Battery, High Winds, Temperature Range Violation
