Netra V Series UAV

Endurance Champion

Overview

NETRA V Series UAV is a fully autonomous and highly man-portable small Unmanned Aerial Vehicle. The drone can be launched from confined spaces and can cover a large area out of human visual and auditory range. NETRA V Series is IP53 certified for ingress protection and also has target tracking capability with zoom-in feature. Multiple fail-safe features enable NETRA V Series to intelligently respond and adapt to unexpected situations.

The NETRA V Series UAV has proven to be an indispensable asset in surveillance, reconnaissance and rescue operations on numerous occasions.

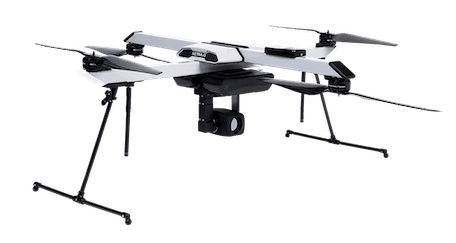

V-Series-1

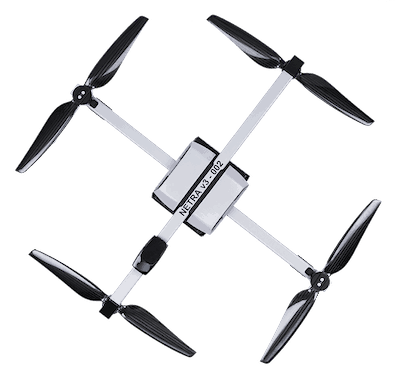

Netra-V-Series-Technical-Specification-1

Technical Specifications

Endurance: 40 – 60 minutes @ MSL

Range (LoS): 4 – 5 km

Weight: < 6 kg

Wind Resistance: Up to 20 knots or 36 km/h

Vehicle Size: < 1 m x 1 m

Ingress Protection: IP53 Rated for Dust & Water Resistance

Max Launch Altitude: 3000 m AMSL

Max Operating Altitude: 400 m AGL

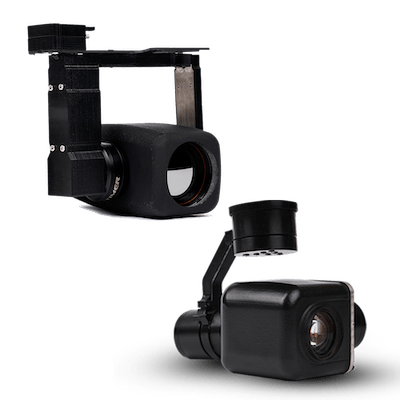

Payloads

Daylight Payload: 720p, 10x Optical Zoom

HD Imaging Payload: 15+ MP

Multispectral Camera: Optional

Thermal Payload (Black/White hot): 320 x 240 pixels, 640 x 480 pixels (Optional)

Thermal Payload: 640 x 480 pixels (Radiometric)

V-Series_Payload_1

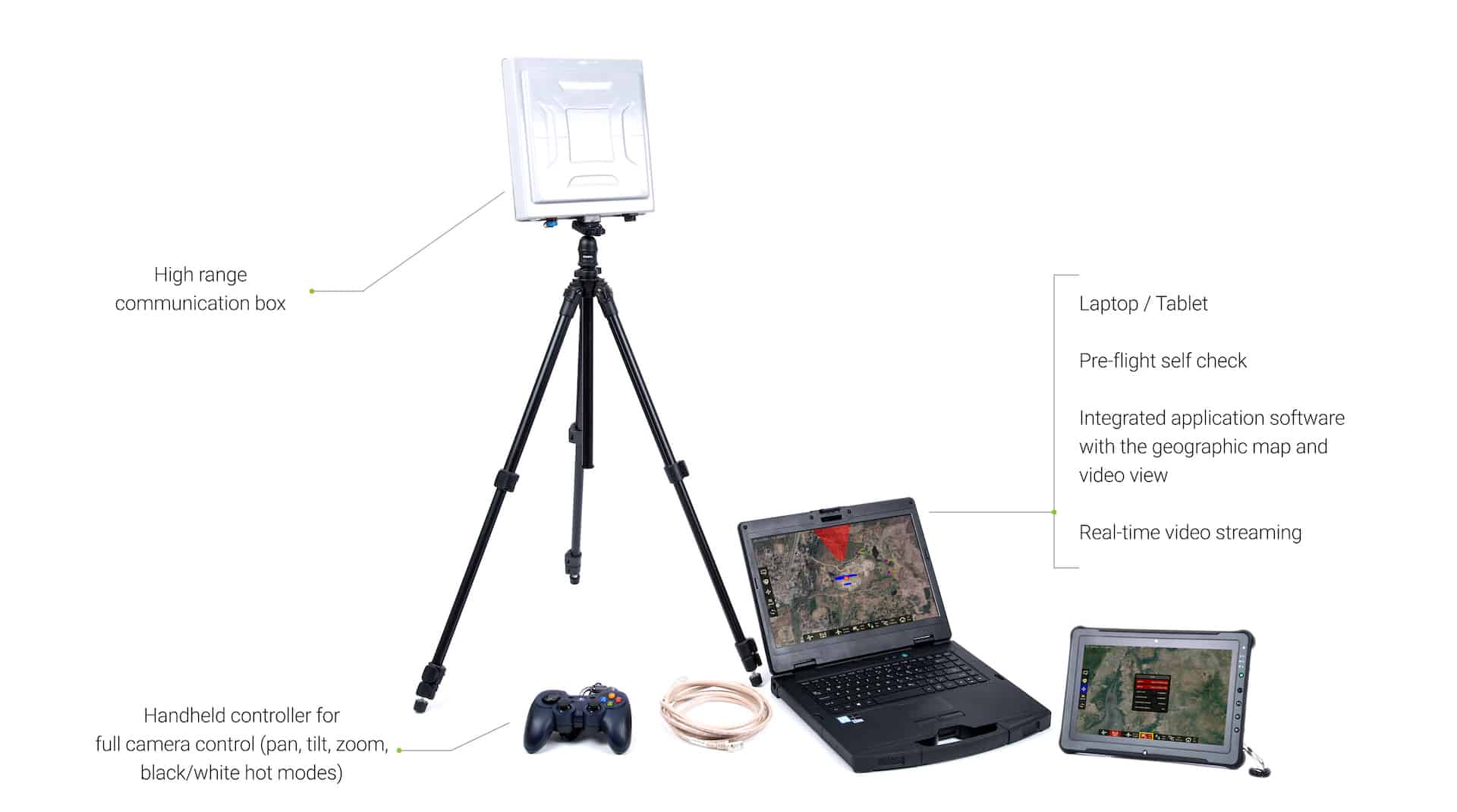

Ground Control Station (GCS) Features

GCS-1

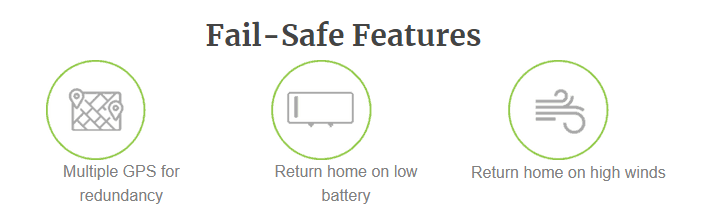

fail safe
