Q Series UAV

Enterprise Specialist

Overview

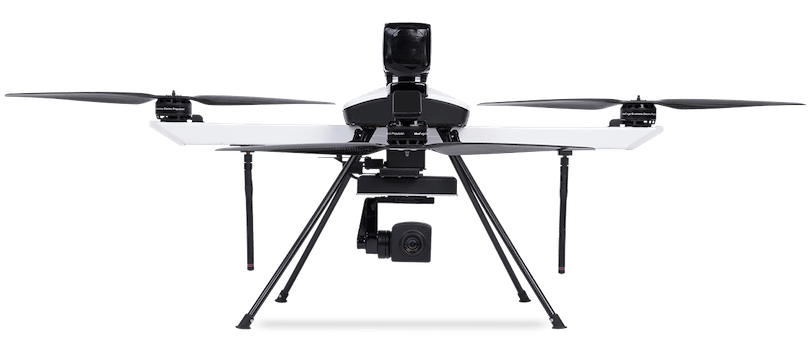

Q Series is ideaForge’s small category VTOL Unmanned Aerial Vehicle (UAV) based on our best-in-class drone technology. It is one of ideaForge’s most economical and efficient drone built with tried-and-tested military design philosophies.

Q Series UAV can ideally be used for Surveying, Mapping, Security & Surveillance, Inspection, Photogrammetry, Traffic Management, Crowd Management & Disaster Relief.

q_series
Netra-Q-Series_technical-specification

Technical Specifications

Endurance: 25 – 40 minutes @ MSL

Range (LoS): 2 – 4 km

Weight: < 3.5 kg

Wind Resistance: Up to 20 knots or 36 km/h

Max Operating Altitude: Up to 400 m AGL

Max Launch Altitude: 3000 m AMSL

Vehicle Size: < 1 m x 1 m

Payloads

Daylight Payload: 1280 x 720 pixels, 10x Optical Zoom

HD Imaging Payload: 15+ MP (PPK Module Optional)

Thermal Payload (Black/White hot): 320 x 240 pixels, 640 × 480 pixels (Optional)

Thermal Payload: 640 × 480 pixels (Radiometric)

Q-Series_Payload_1-2
GCS-1
fail safe
